How to locate serial numbers

Use this article to find the serial numbers on your SmartBench, both for your machine as a whole and the component parts.

< Previous | List | Next >

Machine serial number

This is the serial number for SmartBench as a whole, and starts with “YS” followed by 5 numbers.

This is the same serial number you used to register your warranty and activate SmartBench. Click here to learn more about activating your warranty.

You can find the serial number by navigating to System Information on your SmartBench Console (provided you are using Console software v1.5.0 or above). Click here to learn how to open System Information.

It can also be found on all the boxes that SmartBench arrived in, and on the build sheet that was packed with it.

Component serial numbers

Each component of SmartBench also has its own serial number.

The following table has a list of all the component serial numbers, and you can click on the components to see a photo of where to look..

Component

Prefix

Location

Console

CS

Located on the back of your console.

Z Head

ZH

Located on the underside of the Z Head baseplate, to the left of the vacuum elbow.

Upper X Beam

XU

Located on the underside of the upper beam nearest the home end.

Lower X Beam

XL

Located on the side of the lower X beam, near the home identification sticker.

Y Bench

YB

Located at the home end of the bench, on the underside of the crossrail.

Console

Located on the back of your console.

Z Head

Located on the underside of the plate, to the left of the vacuum elbow.

Upper X Beam

Located on the underside of the upper beam nearest the home end.

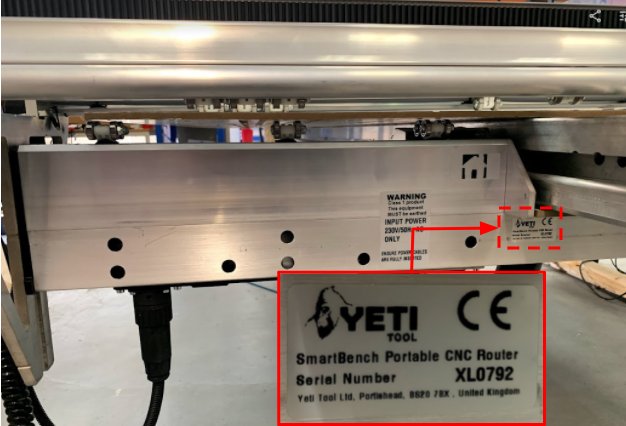

Lower X Beam

For SmartBench v1.2


Located on the side of the lower X beam, near the home identification sticker.

For SmartBench v1.3

Located on the underside of the lower X beam, next to the input voltage sticker.

Y Bench

Located at the home end of the bench, on the underside of the cross rail.
