SmartBench CNC Router V1.3 PrecisionPro Mini

Game Changing CNC Technology


£5607.00 Exc duties, taxes and delivery


Jump to specifications

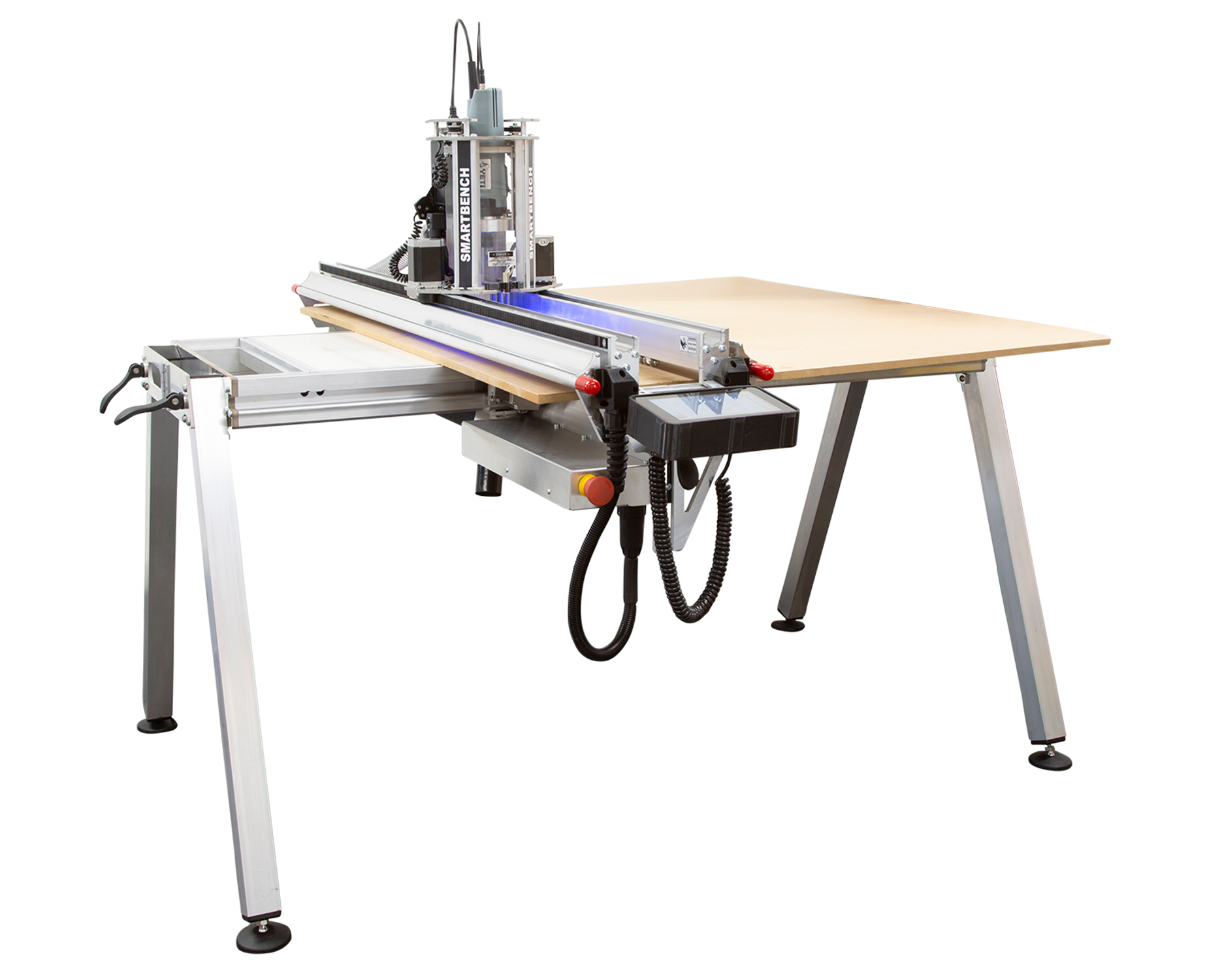

Introducing SmartBench Mini. Our PrecisionPro CNC Router has been reduced in size for those that are restricted on space. Smaller footprint, same great capabilities.

We’ve kept all the groundbreaking features of SmartBench V1.2. The PrecisionPro comes with a real time spindle load display giving you access to all the cutting information you need whilst running a job, an additional Lead screw to improve rigidity in the Z Axis, and a laser X/Y datum which makes setting a job start point quick and incredibly accurate.

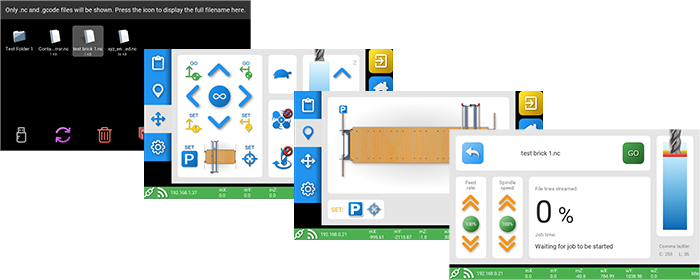

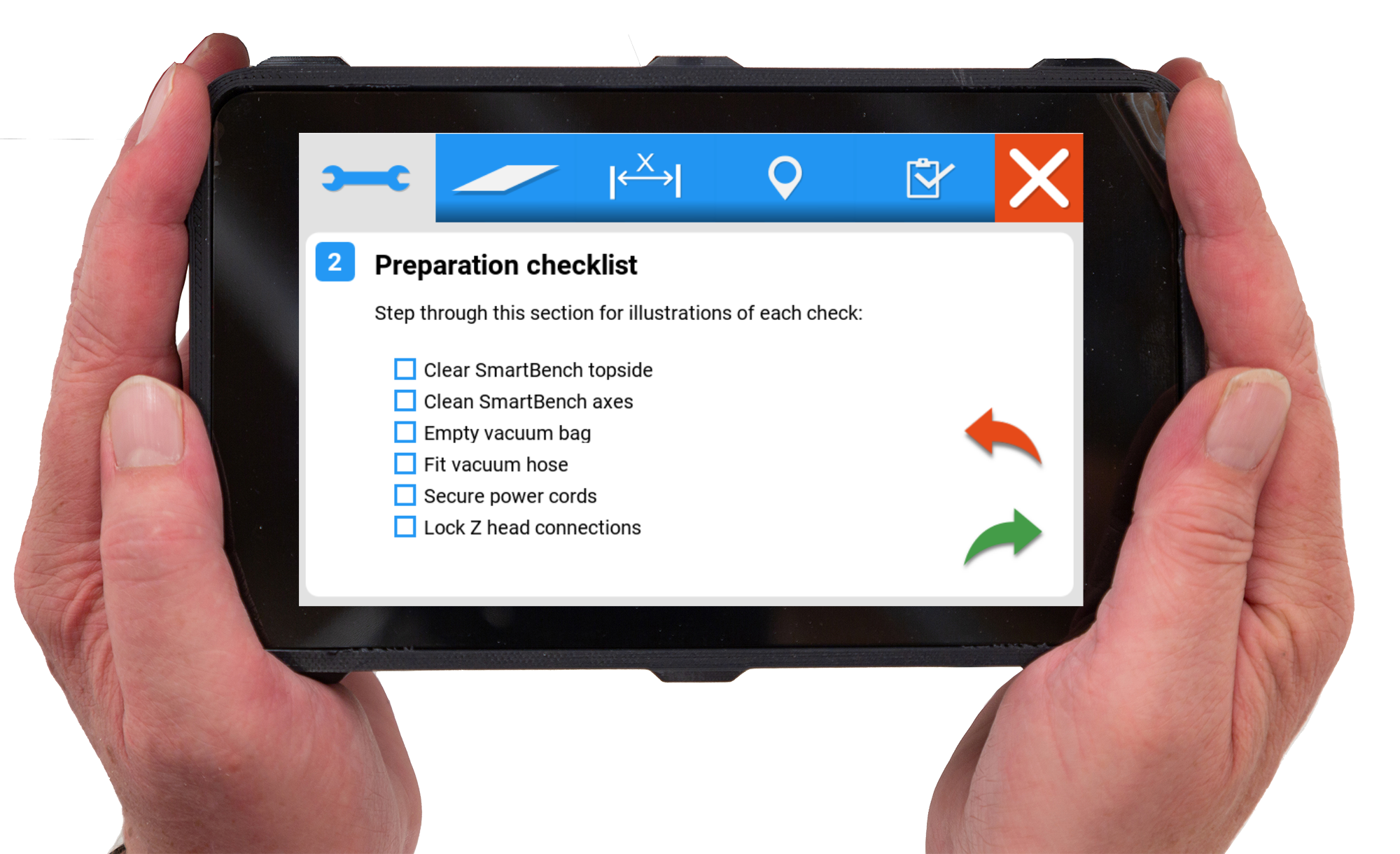

Combined with ShapeCutter our new console based cutting app, you have an intuitive and powerful tool at your fingertips allowing you to start creating like never before.

For those new to CNC, ShapeCutter has a walk-through job wizard making getting started a simple process.

See below to read about your feature-packed unit.


Why you need SmartBench

Accuracy of +/- 0.5mm or better

We quote a finished part accuracy of 0.5mm +/-, better (+/- 0.2mm) can be achieved but this depends on regular maintenance, CAM strategy and the condition of the tooling.

Complete 3 Axis CNC

SmartBench is a complete 3 axis CNC machine, allowing you to create more complex components.

Maximum sheet size 2500 x 1250mm

SmartBench allows you to cut full sized sheet material, with the ability to cut longer sheets when using a feed through strategy. For smaller work spaces we offer the SmartBench mini, which can cut a sheet size of 1250 x 1250 (with feed through capability).

Full edge to edge capability

Get the most out of your material with full edge to edge cutting.

Cutting depth of 150mm

SmartBench can travel up to 150mm giving you a deep and versaitle cut.

CE Certified and FCC Compliant

We are up to date on all our certifications for your peace of mind. Click here to see our certificate.

CNC for everyone

Yeti Tool includes free learning resources, files, and easy-to-use software that is compatible with multiple software so anyone can use our tools.

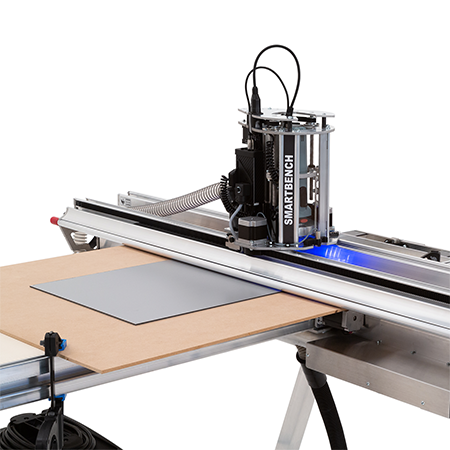

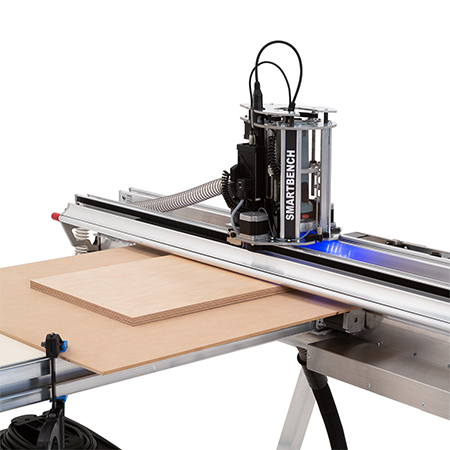

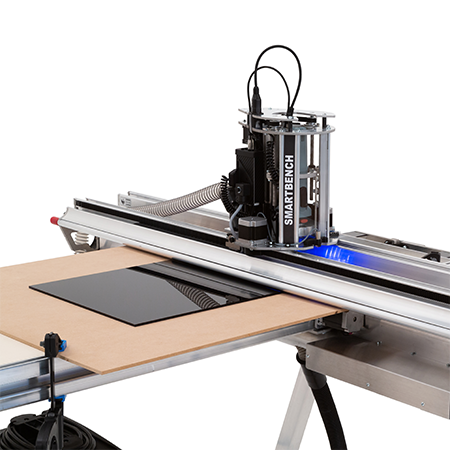

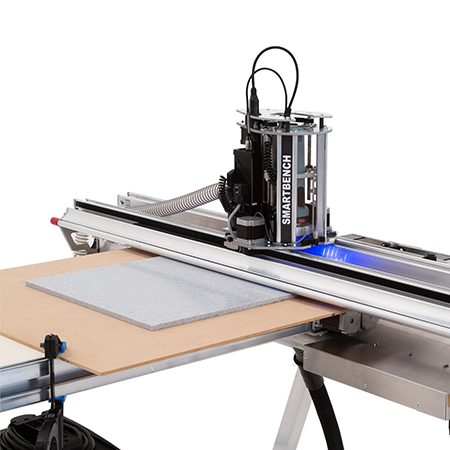

Multiple Materials

You can use SmartBench with timber based materials such as hardwoods and softwood, composite materials like dibond or fibreglass, hard & soft plastics including polycarbonate or acrylic and non ferrous metals such as aluminuim or brass

Remote Software upgrades

We routinely put out software updates for your existing machine making your SmartBench even smarter.

Still got some questions?

  • Live chat to our support team through our Chip Chat in the bottom corner
  • Check out our Knowledgebase
  • Join and chat to our Facebook Talk Group with over 3,500 users
  • New to CNC? Check out our CNC Academy site to learn the basics
  • Check out our Blog to see some amazing creations from out community

What’s in the box?

SmartBench Components

  • 1x - ZHead
  • 1x - X beam lower
  • 1x - X beam upper
  • 1x - Y bench
  • 2x - Pair of legs
  • 1x - 7 Inch console
  • 1x - Spindle motor & speed data cable

Accessories & Extras

  • 1x - 8mm ER16 collet
  • 1x - 1/4 Inch ER16 collet (for non-EU Models)
  • 1x - Spindle collet spanner
  • 1x - 5mm “T” handle hex driver
  • 1x - USB stick
  • 2x - Power cables
  • 1x - Extractor cable
  • 1x - Dust shoe plug in bag
  • 1x - Quick start guide
  • 1x - Yeti hat

What Our Users Have To Say

“SmartBench is very intuitive which was a big factor for me, as being a single person business I don't have time to waste on a tricky learning curve”

- Barry Thompson

“To have the ability to cut a full sheet of material without having to spend out on a full bed machine was a massive plus point for me.”

- R Comer

“I love my Yeti SmartBench and wouldn't trade it for anything. It is the primary reason I have been able to make a career change in the past year.”

- Nick Vasko

“SmartBench is my go-to machine and the hub of my workshop; I don't know what I'd do without it.”

- J Hancock

“The Smartbench has greatly expanded my scope of projects I can take on.”

- K Gaskell

Check Out Our External Reviews

Click the icons to view our reviews on Google or on Trustpilot.

Product Details and Specifications

For SmartBench Precision Pro V1.3

SmartBench PrecisionPro - Model Specific Features
  • ZHead V2
  • 120V 1000W Spindle
  • Digital speed control
  • Auto Tool Stop if spindle is in constant overload
  • Real time spindle load display
  • Precision ER16 collet - max 10mm shank
  • Dual Z Axis Lead Screws for additional ridgidity
  • Laser X/Y Datum set point system
  • Can accommodate up to a 10 amp extraction system
  • Easy to use step by step set-up wizard walks you through your cut.
  • Navigation tabs allow you to navigate through the set up tasks.
  • 10 different geometry types to choose from.
  • Save your tool/job profile for a quick job turn around.
  • Prompts and hints on process.
  • Compatible with both inches and millimeters.

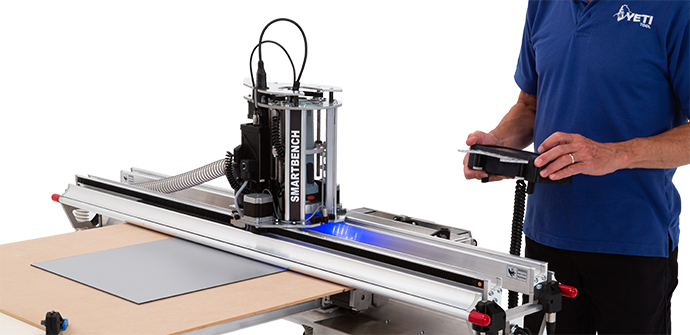

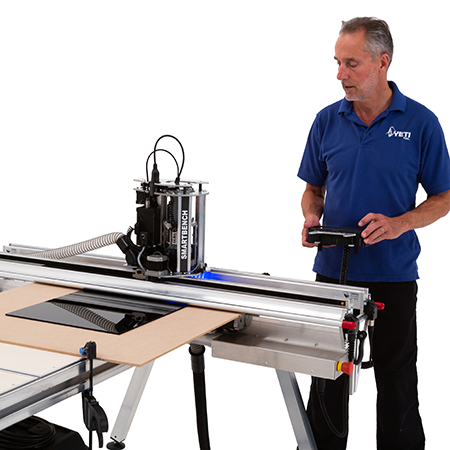

Ease of use

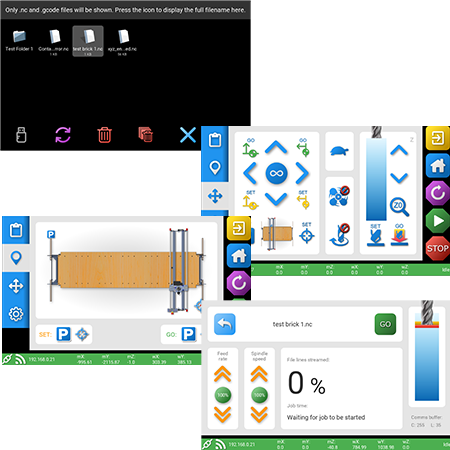

  • Intuitive touch screen control.
  • Wi-Fi (2.4GHz Network only)/USB connectivity for simple file transfer.

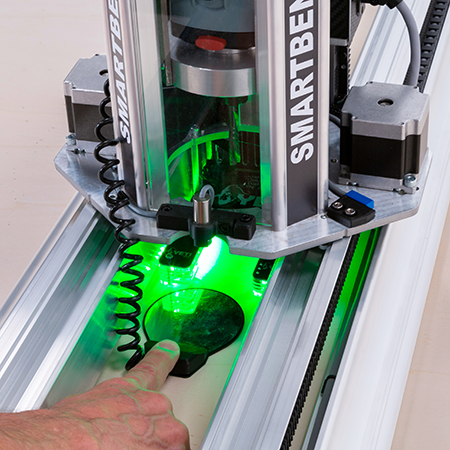

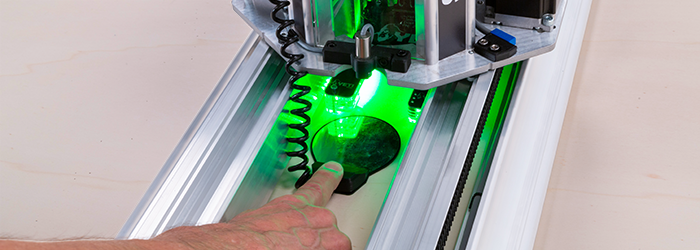

  • Z Probe for fast, easy and accurate setting.
  • Extraction system for clean operation.
  • Pack up and store away in 3 minutes.
  • Easy and quick calibration app ensures your SmartBench is always in tip top condition.
Improve efficiency
  • Autonomous cutting – Working with you. SmartBench gets the job done whilst allowing you to get on with other tasks.
  • Fast setup – plan your job on the touch screen, set your materials and press go.
  • Astonishing job time – SmartBench can perform multiple cutting operations, dramatically improving your job time.
  • SmartBench fits into a SWB van.
  • Sections have been made to be handled by one person.
  • Nothing more required to start producing standard shapes than SmartBench and a router bit.
  • Set up on site within 3 minutes.
  • Height adjustable feet makes light work of setting up on un-even surfaces.
Compact capabilities
  • Process up to 1250mm (49.2'') x 1250mm (49.2'') sheets edge to edge.
  • Use SmartBench in feed-through mode and process any length of work surface.
Multi materials
  • Softwood and hardwood timber sections up to 150mm thick.
  • Timber based composite boards
  • Composite worksurfaces
  • Polycarbonate, Acrylic and other forms of plastic

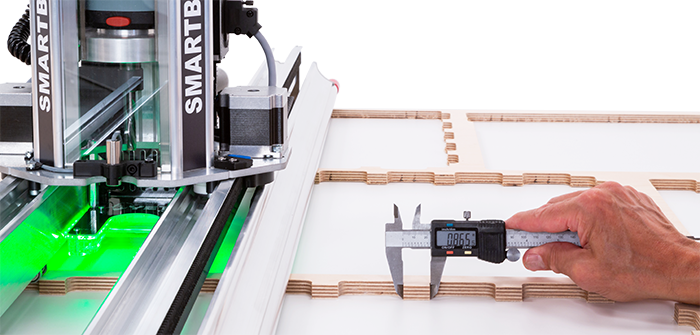

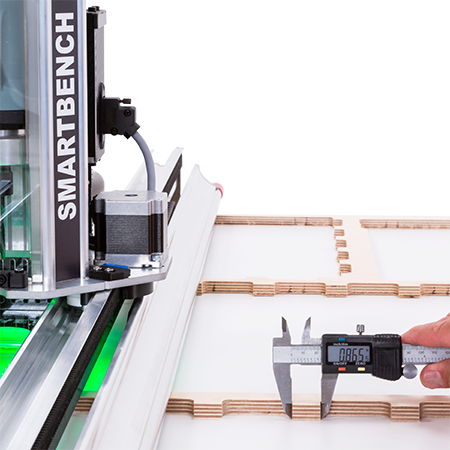

Quality and accuracy assured
  • Accuracy of +/-0.5mm or better
  • CE certified
  • Remote software upgrades means you get the benefit of our ever increasing library of cutting apps

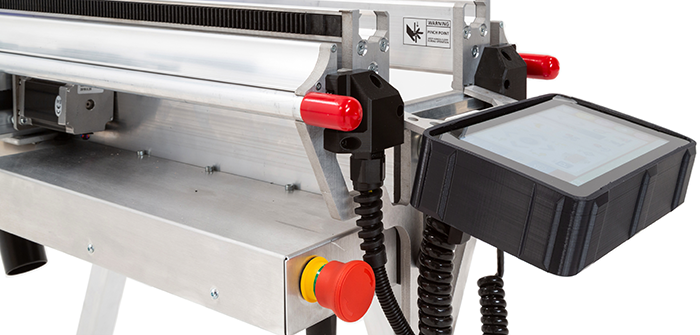

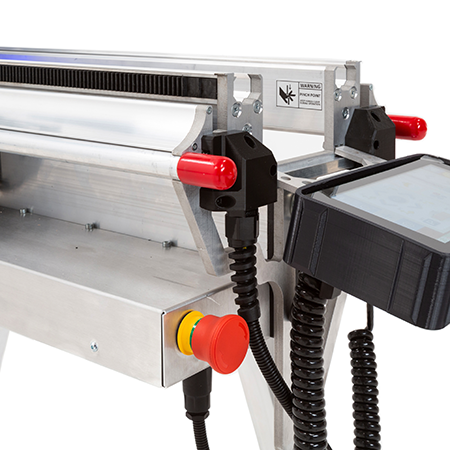

Safety in mind
  • E Stop
  • Interupt bars along the x axis
Yeti Tool Knowledge Base
Find out more

Visit the SMARTBENCH category in our knowledge base here

Pricing, Warranty, Installation & Maintenance

Please note, if you are located outside the EU, 2.9% import duties will be payable to UPS when the packages arrive in the country of destination.

VAT or your local sales tax will be payable at the same time.


We've designed our routers as a self install product to negate the need and cost of any professional installation.

Once you receive your router and have unpacked it, installation is easy, just follow our comprehensive instructions and you'll be up and running in no time.


We offer a 12 months parts and labour (excludes wearable parts) return to point of purchase warranty.

For more information visit our website terms here.


Please visit our maintenance page for details of the 50, 100 and 320 hour checks and maintenance procedures to perform

The following items are classed as wearable SmartBench items

Spindle Brushes

Wheel assemblies


Packaging & Shipping



We appreciate the experience of receiving your router is all part of the buying experience. So we've thought about that too.

Once the carrier has delivered your new router our packaging has been designed to be easily separated into four packs, each of which can be handled by two people.


If you order direct from us our typical delivery service is as indicated below.

  • UK 1 - 3 working days
  • Europe 2 - 4 working days
  • North America 3 - 5 working days
  • Rest of the world 5 - 7 working days

Of course the speed of delivery depends on the freight service you choose.

Our distribution partners will offer quicker shipping times, please check with them at time of purchase.



X axis travel:

1265mm (49.8'')

X max speed:

6 meters per minute (236'' per minute)

Y axis travel:

1290mm (50.8'')

Y max speed:

6 meters per minute (236'' per minute)

Z axis travel:

130mm (5.12'')

Z max speed:

2 meters per minute (78'' per minute)

Max sheet cut size:

1250 x 1250mm (49.2'' x 49.2'')

Max depth of material:

152mm (6.0'')

X & Y Axis:

Rack and pinion

Z Axis:

Twin lead screw

Processing your model


Any CAM software with a GRBL post processor

File Types:

.nc or .gcode



10,000 - 25,000 rpm

Speed Control:


Auto Tool Stop:



1000 watt


ER16 - Max shank 10mm (0.394'')

Finished Part


+/-0.5mm (0.019'') or better

Power requirements




1900 watts

Physical dimensions


1635mm (64.4'')


1671mm (65.0'')


1350mm (53.2'')


50kg (112.5lbs)

Shipping dimensions

Number of Boxes:


Total Weight:

105kg (236lbs)
